ⓘ Locate the chassis number underneath your windshield

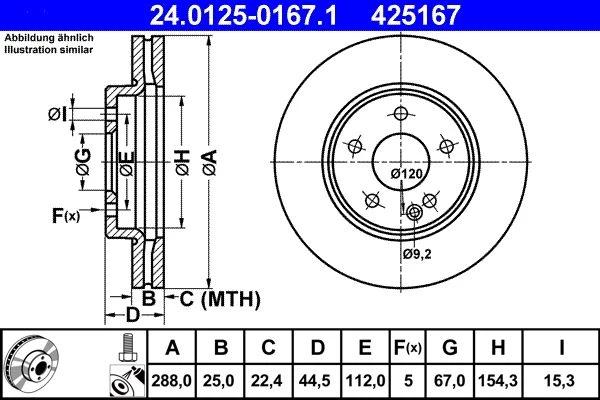

| Outer diameter (mm) | 288.0 |
| Brake disc thickness (mm) | 25.0 |
| Min. thickness (mm) | 22.4 |
| Height (mm) | 44.5 |
| Brake disc type | vented |
| Centering diameter (mm) | 67.0 |
| Bolt hole circle Ø (mm) | 112.0 |
| Surface | coated |
| Supplementary article/supplementary info 2 | with bolts/screws |
| Appr. stamp | e1 90r-02c0115/0011 |
| Num. of holes | 5 |
| Machining | alloyed/high-carbon |
| Inner diameter (mm) | 154.3 |
| Bore Ø (mm) | 15.3 |
| Manufacturer | Productnumber |
| mercedes-benz | 169 421 02 12 , 1694210212 |
| mercedes-benz | 169 421 11 12 , 1694211112 |
| mercedes-benz | A 169 421 02 12 , A1694210212 |
| mercedes-benz | A 169 421 11 12 , A1694211112 |
| Usage numbers |
| 425167 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 mercedes-benz |
