ⓘ Locate the chassis number underneath your windshield

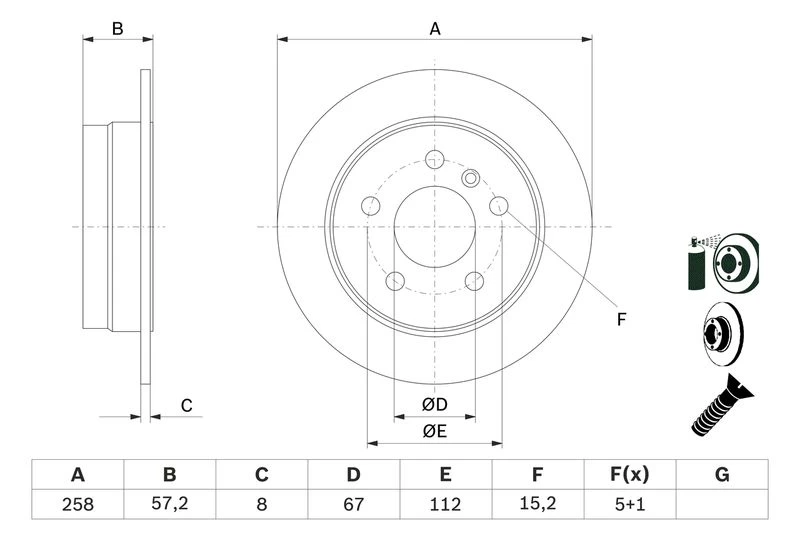

| Outer diameter (mm) | 258 |
| Brake disc thickness (mm) | 7.9 |
| Min. thickness (mm) | 7 |
| Height (mm) | 57.2 |
| Brake disc type | solid |
| Centering diameter (mm) | 67 |
| Bolt hole circle Ø (mm) | 112 |
| Surface | coated |
| Supplementary article/supplementary info 2 | with bolts/screws |
| Num. of holes | 5 |
| Fulfils ece standard | ece-r90 |
| Drill Ø, up to (mm) | 15.2 |
| Manufacturer | Productnumber |
| mercedes-benz | 169 423 00 12 , 1694230012 |
| mercedes-benz | 169 423 03 12 , 1694230312 |
| mercedes-benz | 169 423 09 12 , 1694230912 |
| mercedes-benz | A 169 423 00 12 , A1694230012 |
| mercedes-benz | A 169 423 03 12 , A1694230312 |
| mercedes-benz | A 169 423 09 12 , A1694230912 |
| Usage numbers |
| BD1101 |
| E1 90R-02C0357/0956 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 mercedes-benz |
